|
|
|
|
|
|
|
| Base Metal: Stainless Steel |
|
|
|
|
|
| Process: SMAW |
|
|
|
|
|
|
| Position: All Position |
|
|
|
|
|
| Current/Polarity: DCRP (DCEP) |
|
|
|
|
|
| Electrode
Type: Lime, basic coating, good penetration
electrode |
|
|
| Note: |
|
|
|
|
|
|
| Electrode
-15 produce globular mode, produce cleanest weld metal and convex profile
that is |
|
| best
"hot cracking resistance" and penetration preferred for narrow
grooves and other than flat. |
|
| Parameters are
based on manufacturers' recommendation survey. |
|
|
| Smaller size electrode applicable for root passes or on
thinner metal |
|
| Always choose
electrode size less than the thickness |
|
|
|
|
|
|
|
|
|
|
| Filler Metal
Electrodes: |
|
|
|
|
|
| AWS A5.4: E308L-15, E316L-15, E308-15, E316-15 or similar stainless
steel electrodes (E3XX-15) |
|
|
|
|
|
|
|
Electrode
Size
in. (mm) |
A |
Position |
|
|
|
|
| 5/64
(2.0 mm) |
30-50 |
Flat/Horizontal |
|
|
|
|
| 3/32
(2.4 mm) |
40-70 |
Flat/Horizontal |
|
|
|
|
| 1/8
(3.20 mm) |
65-100 |
Flat/Horizontal |
|
|
|
|
| 5/32
(4.0 mm) |
100-145 |
Flat/Horizontal |
|
|
|
|
| 3/16 (4.8 mm) |
130-190 |
Flat/Horizontal |
|
|
|
|
|
|
|
|
|
|
|
Electrode
Size
in. (mm) |
A |
Position |
|
|
|
|
| 5/64
(2.0 mm) |
30-50 |
Vertical |
|
|
|
|
| 3/32
(2.4 mm) |
35-50 |
Vertical |
|
|
|
|
| 1/8
(3.20 mm) |
55-75 |
Vertical |
|
|
|
|
| 5/32
(4.0 mm) |
85-110 |
Vertical |
|
|
|
|
| 3/16 (4.8 mm) |
|
Vertical |
|
|
|
|
|
|
|
|
|
|
|
Electrode
Size
in. (mm) |
A |
Position |
|
|
|
|
| 5/64
(2.0 mm) |
30-50 |
Overhead |
|
|
|
|
| 3/32
(2.4 mm) |
40-60 |
Overhead |
|
|
|
|
| 1/8
(3.20 mm) |
60-85 |
Overhead |
|
|
|
|
| 5/32
(4.0 mm) |
95-120 |
Overhead |
|
|
|
|
| 3/16 (4.8 mm) |
|
Overhead |
|
|
|
|
|
|
|
|
|
|
|
| Base Metal: Stainless Steel |
|
|
|
|
|
| Process: SMAW |
|
|
|
|
|
|
| Position: All Position |
|
|
|
|
|
| Current/Polarity: DCRP (DCEP)/AC (preferred polarity is listed first) |
|
|
| Electrode
Type: Rutile, acidic coating, medium penetration
electrodes |
|
|
| Note: |
|
|
|
|
|
|
| When using AC,
current has to be increased about 10%. |
|
|
|
| E3XX-16
and E3XX-17 are both recommended for flat groove position and horizontal
fillet. |
|
| Electrodes -16, -17 both produce fine spray mode, -17 is
not recommended for other than flat position. |
| Electrode -16 can be used for all position and is common
for overlay, as it provides smoother surface finish than -17. |
| Electode
-17 also used where minimum clean up is desired, produce good appearance and
concave profile. |
| Smaller size
electrode applicable for root passes or on thinner metal |
|
| Always choose
electrode size less than the thickness |
|
|
|
|
|
|
|
|
|
|
| Filler Metal
Electrodes: |
|
|
|
|
|
| AWS A5.4: E308L-16, E316L-16,
E308-16, E316-16 or similar stainless electrodes (E3XX-16) |
| AWS A5.4: E308L-17, E316L-17,
E308-17, E316-17 or similar stainless electrodes (E3XX-17) |
| AWS A5.4: E308L-26, E316L-26
(Flat Groove/Flat and Horizontal Fillet position only) |
|
|
|
|
|
|
|
Electrode
Size
in. (mm) |
A * |
Position |
|
|
|
|
| 5/64
(2.0 mm) |
35-55 |
Flat/Horizontal |
|
|
|
|
| 3/32
(2.4 mm) |
60-85 |
Flat/Horizontal |
|
|
|
|
| 1/8
(3.20 mm) |
90-120 |
Flat/Horizontal |
|
|
|
|
| 5/32
(4.0 mm) |
125-160 |
Flat/Horizontal |
|
|
|
|
| 3/16 (4.8 mm) |
160-210 |
Flat/Horizontal |
|
|
|
|
|
|
|
|
|
|
|
Electrode
Size
in. (mm) |
A * |
Position |
|
|
|
|
| 5/64
(2.0 mm) |
35-55 |
Vertical |
|
|
|
|
| 3/32
(2.4 mm) |
40-60 |
Vertical |
|
|
|
|
| 1/8
(3.20 mm) |
70-80 |
Vertical |
|
|
|
|
| 5/32
(4.0 mm) |
90-120 |
Vertical |
|
|
|
|
| 3/16 (4.8 mm) |
|
Vertical |
|
|
|
|
|
|
|
|
|
|
|
Electrode
Size
in. (mm) |
A * |
Position |
|
|
|
|
| 5/64
(2.0 mm) |
35-55 |
Overhead |
|
|
|
|
| 3/32
(2.4 mm) |
40-60 |
Overhead |
|
|
|
|
| 1/8
(3.20 mm) |
60-85 |
Overhead |
|
|
|
|
| 5/32
(4.0 mm) |
95-125 |
Overhead |
|
|
|
|
| 3/16 (4.8 mm) |
|
Overhead |
|
|
|
|
| *

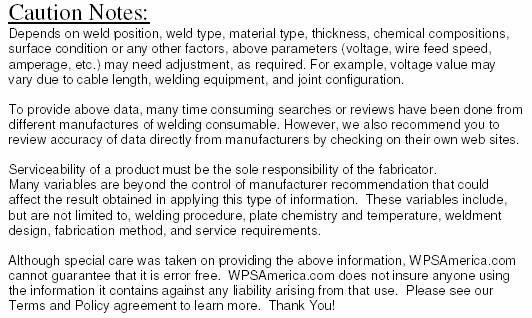

Increase Amperage about 10% of the above current for AC |
|
|
|
|
|
|
|
|
|
| Good to know
tips when welding Stainless Steel On The Go |
|
|
|
|
|
|
|
|
|
| Stainless
steels are commonly divided into the following general groups: |
|
|
| (1) Chromium
Martensitic (4XX Series) |
|
|
|
|
| (2) Chromium
Ferritic (4XX Series) |
|
|
|
|
| (3) Austenitic
(2XX Series, Cr-Ni-Mn and 3XX Series Cr-Ni) |
|
|
|
| (4) Precipitation-hardening (grades are assigned
designations based on their Cr and Ni contents) |
| |
|
|
|
|
|
|
| For
low or high temperature, corrosive or any critical applications always
confirm electrode choice |
| with wire
manufacturer. |
|
|
|
|
|
| |
|
|
|
|
|
|
| For
similar metal joints, use filler metal of matching composition, |
|
|
| (e.g.: weld
304L with 308L wire), (316 with 316, and 308L with 308L wire). |
|
|
| |
|
|
|
|
|
|
| Dissimilar
joining, use the lower alloyed of the two base metals (e.g. use 308 to join
304 to 316). |
| |
|
|
|
|
|
|
| If
both metals are low carbon (3XXL), then use low carbon, 3XXL filler metal as
well. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
